This document demonstrates how to embed ARM Cortex-M7 machine code directly into your BASIC program on the Colour Maximite 2 using the CSUB directive. It covers a minimal example, explains the embedded machine code, and provides detailed instructions on writing, compiling, and embedding ARM Thumb-2 assembly or C routines.

What is CSUB?

CSUB allows embedding raw ARM machine code or compiled C/assembly routines into Colour Maximite 2 BASIC programs. These embedded routines appear as BASIC commands or functions and run natively on the ARM Cortex-M7 processor, enabling efficient, low-level operations beyond standard BASIC capabilities.

According to the Colour Maximite 2 user manual:

CSUB name [type [, type] …]
hex hex[…
hex hex[…
END CSUB

Defines the binary code for an embedded machine code program module written in C or ARM assembler. The module will appear in MMBasic as the command 'name' and can be used in the same manner as a built-in command.

Multiple embedded routines can be used in a program, each defining a different module with a different name. The first hex word is a 32-bit word which is the offset in bytes from the start of the CSUB to the entry point of the embedded routine (usually the function main()). The following hex words are the compiled binary code for the module.

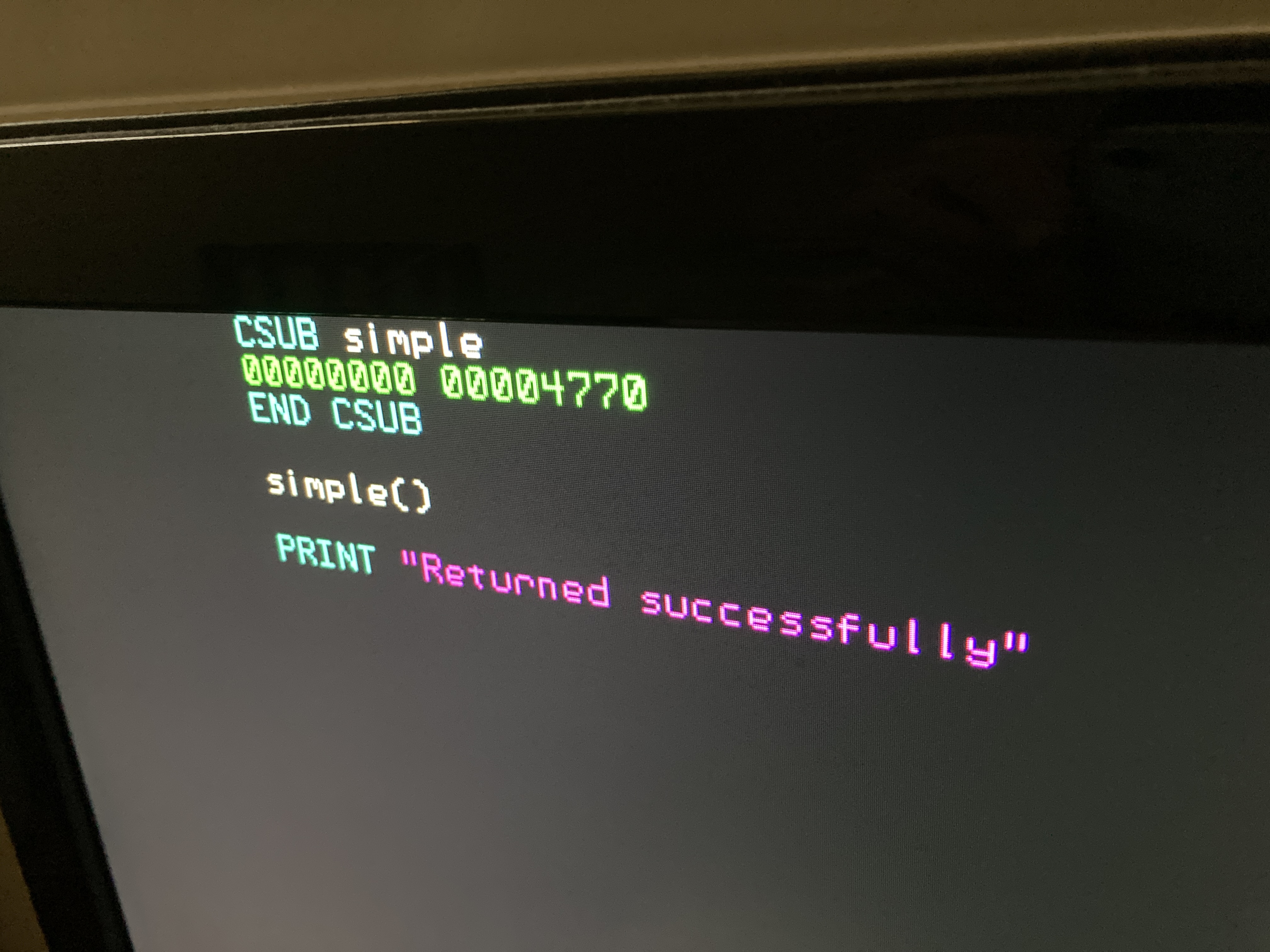

CSUB Code Example

CSUB simple
00000000 00004770
END CSUB

simple()

PRINT "Returned successfully"

What Does This Thumb-2 Machine Code Do?

`CSUB simple`

Starts the definition of a machine-code subroutine named simple.
Tells the BASIC runtime that the following hex words are compiled machine code to execute when simple() is called.

`00000000`

The entry point offset for the CSUB.
A value of 0 indicates execution starts immediately at the next word.
This word is metadata only; it is not executed as machine code.

`00004770`

Encodes the Thumb instruction BX LR (Branch to Link Register).
This instruction returns immediately from the subroutine to BASIC.

`END CSUB`

Marks the end of the CSUB block.
Signals that the machine code definition is complete, and BASIC execution continues normally.

`simple()`

Calls the subroutine simple.
Execution jumps to the CSUB, reads the entry point offset, executes the BX LR instruction, and immediately returns.

`PRINT " Returned successfully"`

Prints a message to the BASIC console to indicate the subroutine returned successfully.

ARM Thumb-2 Assembly Example Corresponding to the Machine Code

.syntax unified
.thumb
.global simple

simple:
    movs r0, #42       @ Load immediate value 42 into register R0
    bx lr              @ Return from subroutine

Explanation

.syntax unified: Use modern unified ARM assembler syntax.
.thumb: Assemble for the Thumb instruction set used by Cortex-M7.
.global main: Declare the main symbol as global (entry point).
movs r0, #42: Move the immediate value 42 into register R0 (standard register for function return values).
bx lr: Branch to the address stored in the Link Register (LR), returning control to the caller.

How to Compile, Link, and Extract Binary

Step 1: Save Assembly Code

Save the code above as main.s.

Step 2: Assemble to Object File

arm-none-eabi-as -mcpu=cortex-m7 -mthumb main.s -o main.o

-mcpu=cortex-m7: Target Cortex-M7 CPU.
-mthumb: Use Thumb instruction set.

Step 3: Link to ELF Executable

arm-none-eabi-ld main.o -Ttext=0x0 -o main.elf

Or combine compiling and linking with GCC:

arm-none-eabi-gcc -mcpu=cortex-m7 -mthumb -nostartfiles -Wl,-Ttext=0x0 -o main.elf main.s

-nostartfiles: Avoid linking standard startup code.
-Ttext=0x0: Load address set to 0.

Step 4: Extract Raw Binary

arm-none-eabi-objcopy -O binary main.elf main.bin

Step 5: View Machine Code as Hex

xxd -e main.bin

Sample output:

00000000: 20420047

20420047 is the machine code word representing movs r0, #42 and bx lr.

Preparing the CSUB Block

The first 32-bit word is the entry point offset (usually 00000000).
Following words are your compiled machine code in 32-bit hex words.

Example:

CSUB myfunc
00000000 20420047
END CSUB

myfunc()

PRINT "Returned value in R0 was 42"

Passing Arguments and Returning Data

You can specify argument types in the CSUB definition, e.g.,

CSUB MySub integer, integer, string

Up to 10 arguments are supported.
Variables or arrays passed are pointers to their data. This allows embedded routines to modify passed data directly.
Constants and expressions are passed as pointers to temporary memory containing their values.
Remember to call routinechecks() regularly in longer-running routines to keep USB and watchdog timers active, or keep your routine execution within a few milliseconds.

Additional Tips and Verification

Use arm-none-eabi-objdump -d main.elf to disassemble and verify your machine code.
Compile C routines similarly, specifying -mcpu=cortex-m7 -mthumb in compiler flags.
Place CSUB blocks anywhere in your BASIC code; MMBasic will skip over them during execution.
Each hex word must be exactly eight hex digits and separated by spaces or new lines.
Errors in formatting or hex data will cause runtime errors in MMBasic.
